Product Details:
Payment & Shipping Terms:
|
| Features: | Protect Athletes' Eyes, Good Wear Resistance | Item: | Football Grass |
|---|---|---|---|
| Application: | Football | Colour: | Field Green + Olive Green (same Hole) |
| Code: | CS130 | Height: | 50mm |
| Roll Width: | 4.0m/2.0m | Detex: | 13000 |
| Stitches Per M2: | 9450±100 | Backing: | PP+Leno |

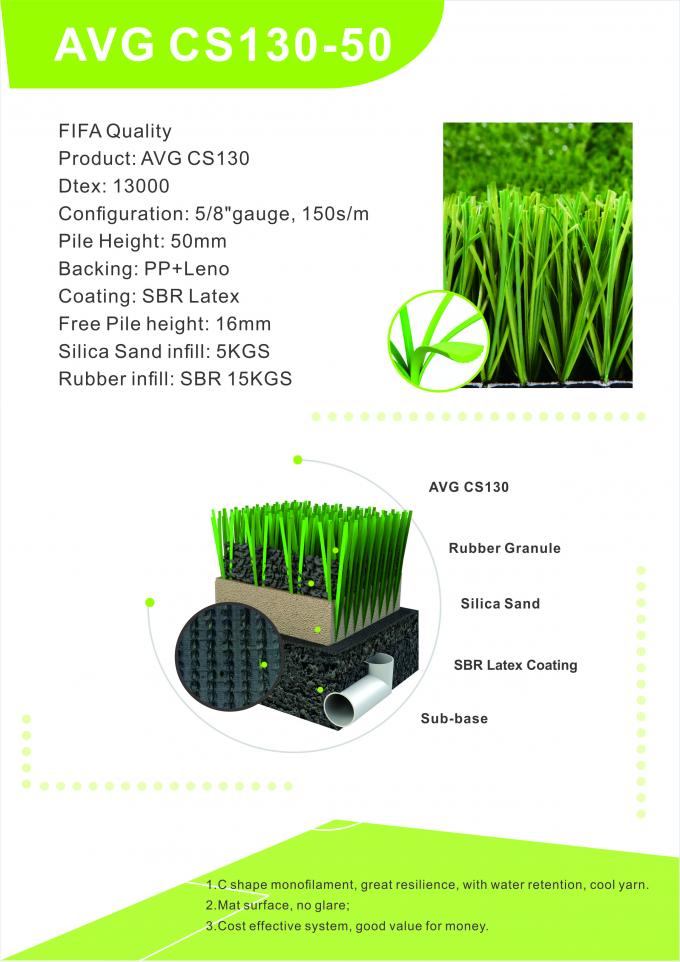

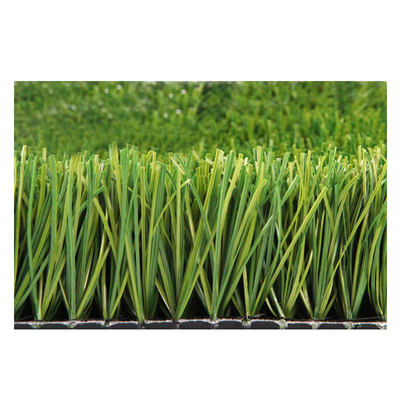

Popular Artificial Football Grass Soccer Turf Carpet 50mm For Oudoor
AVG’s FIFA approved football grass CS130 is a perfect combination of outstanding sports performance and natural looking appearance. It provides athletes a great playing experience and at the same time a long service life.
The unique fiber design with stems providing a matte looking, which reduced the intensity of light reflection, making athletes' eyes more comfortable. Meanwhile, the C-shaped blades with stems have perfect water retention function, which ensures the field will not be overheated.
Key benefits:
| PRODUCT SPECIFICATION | |||
| Product name: | AVG CS130-50 | Application: | Football |
| Model: | AF50415CS13022 | Roll width: | 4.0m/2.0m |
| Color: | Field&Olive Bi-color | Roll length: | On request |
| Accreditations | FIFA Quality | Warranty: | 8 years under AVG warranty terms |
| YARN CHARACTERISTICS | |||
| Yarn 1 | |||
| Structure: | Monofilament | ||
| Composition: | PE | ||
| Dtex: | 13000 | ||
| Yarn thickness: | 250±10μm | ||
| Yarn width: | 1.0±0.1mm | ||
| UV Effects | |||
| Yarn color fastness: | Grey scale ≥4 | UV stability | ＞5000hrs |
| CARPET CHARACTERISTICS | |||
| TURF | |||
| Pile height: | 50mm±2mm | Gauge: | 5/8inch |
| Number of strands per tuft: | 6 strands | Stitches per 10cm: | 15±1 |
| Stitches per m2 | 9450±100 | Total yarn weight: | 1360g/sqm ±10% |
| BACKING | |||
| Primary backing: | PP+Leno | ||
| Weight: | 171g/sqm | ||
| Latex weight: | 1100g/sqm ±10% | ||
| Total carpet weight: | 2630g/sqm ±100g/sqm | ||
| Carpet | |||
| Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | ＞180mm/hr |
| INFILL REQUIREMENTS | |||
| Sand | |||
| Particle size range | 0.5-1.0mm | Particle shape: | Round |
| Bulk density | 1.28g/cm3 | Application rate: | 12kg/sqm |
| SBR | |||
| Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
| Bulk density: | 0.36g/cm3 | Application rate: | 12kg/sqm |
How to install the artificial grass
Trim grass to fit area . |
Trimming edge of grass prior to applying the glue |
Jointing tape in place . |
Apply glue to tape . |
joint prepared . |
offer grass edges togrther . |
Packaging & Shipping
Packing: Outside:transparent PE film bags wrapping or white woven geotextile wrapping.
Inside:with paper plug,with plastic plug and without any plug.
Shipping: Regular transport by sea,or as the customers requirement

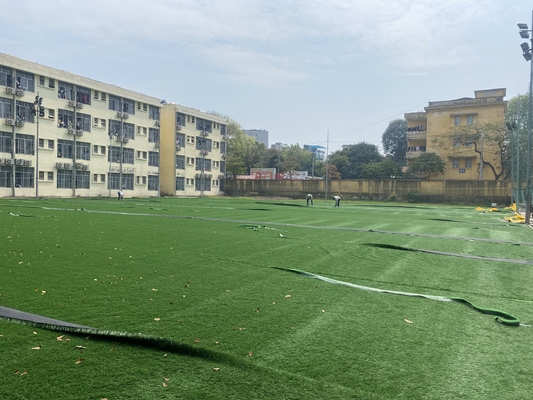

Project
In China , we are the only artificial turf supplier to three international events : The 2008 Olympic Games, The Asian Games and the Universiades .
AV GRASS is used in more than 20,000 professional sports courts and outdoor recreation venues , such as The Hong Kong Polytechnic University, Hong Kong Causeway Bay Sports Center , Sun Yat - Sen University , Mission Hills Golf , Shenzhen Foxconn Group , Japan Kobe University , Indonesia's National Stadium as well as Saudi Arabia United Arab Emirates and Exhibition Centre .
