Product Details:
Payment & Shipping Terms:
|
Features: | Unique Diamond + Reinforced Design | Item: | Football Grass |
---|---|---|---|
Application: | Football | Colour: | Field Green + Tender Green |
Code: | 4D130 | Height: | 40mm |
Roll Width: | 4.0m/2.0m | Detex: | 13000 |
Stitches Per M2: | 10080±100 | Backing: | PP+Leno |

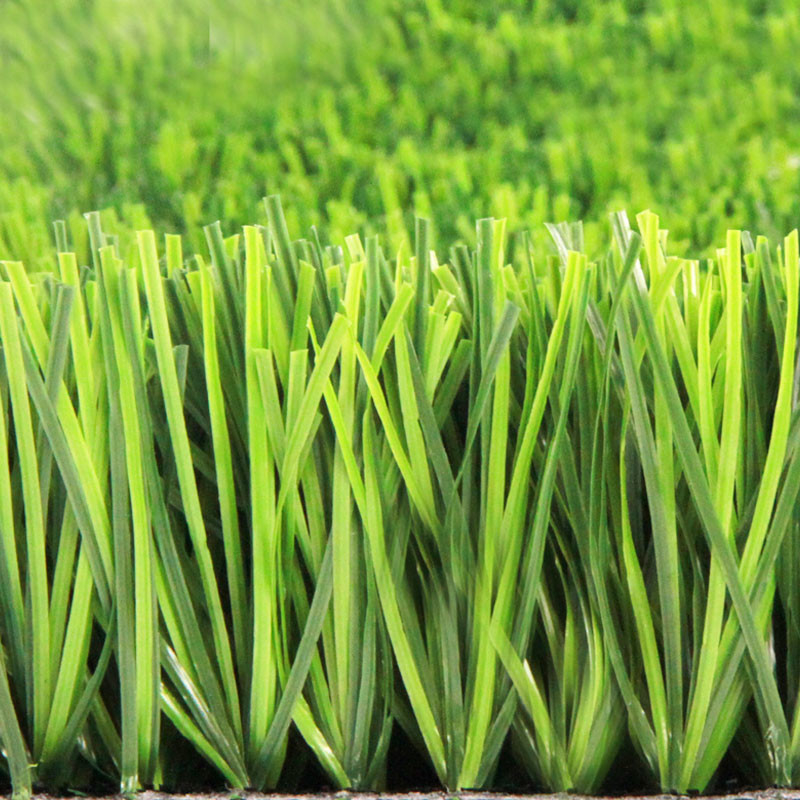

Fifa Turf Grass 40mm Factory Approved Football Grass For Outdoor
Diamond 4D 130
◆Core selling point: unique diamond + reinforced design, perfect combination of wear resistance and straightness appearance
◆Warranty period: 6-8 years
◆Recommended grass height: 40mm-60mm
◆Base fabric configuration: black and green PP+ leno
PRODUCT SPECIFICATION | |||
Product name: | AVG 4D130-40 | Application: | Football |
Model: | AF50415CS13022 | Roll width: | 4.0m/2.0m |
Color: | Field&Olive Bi-color | Roll length: | On request |
Accreditations | FIFA Quality | Warranty: | 8 years under AVG warranty terms |
YARN CHARACTERISTICS | |||
Yarn 1 | |||
Structure: | Monofilament | ||
Composition: | PE | ||
Dtex: | 13000 | ||
Yarn thickness: | 250±10μm | ||
Yarn width: | 1.0±0.1mm | ||
UV Effects | |||
Yarn color fastness: | Grey scale ≥4 | UV stability | >5000hrs |
CARPET CHARACTERISTICS | |||
TURF | |||
Pile height: | 40mm±2mm | Gauge: | 5/8inch |
Number of strands per tuft: | 6 strands | Stitches per 10cm: | 15±1 |
Stitches per m2 | 10080±100 | Total yarn weight: | 1360g/sqm ±10% |
BACKING | |||
Primary backing: | PP+Leno | ||
Weight: | 171g/sqm | ||
Latex weight: | 1100g/sqm ±10% | ||
Total carpet weight: | 2630g/sqm ±100g/sqm | ||
Carpet | |||
Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | >180mm/hr |
INFILL REQUIREMENTS | |||
Sand | |||
Particle size range | 0.5-1.0mm | Particle shape: | Round |
Bulk density | 1.28g/cm3 | Application rate: | 12kg/sqm |
SBR | |||
Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
Bulk density: | 0.36g/cm3 | Application rate: | 12kg/sqm |
Competitive Advantage:
If Ask me, What is the Most Important in the World?
Children will Tell You the Truth.
in a Poor Village, Innocent Children no Education, no Happiness and no Hope.
However, AV Grass Brings new Happiness and Love There.
After That,Sunshine Smile is Always around Children.
They See Hope for Everything and Know How to Deliver Happiness with grass.
Production Base:
1. Extruding Machines imported from Europe and USA.
2. BEYONG YARN is exclusively developed by AVG,originating from U.K design idea ,with the world-class yarn quality and the core technology for abrasion resistant ,upto 12 years guarantee,widely used in football field for contestes and professional football club.
3. Australia CTS coating Machine ,the most advanced in China , with longest drier oven up to 25meters.
4. DOW(U.S) pro-environment glue DL8728 as major coating materials .
