Product Details:
Payment & Shipping Terms:
|
| Features: | Classic, Supple, Cost-effective | Item: | Football Grass |
|---|---|---|---|
| Application: | Football | Colour: | Field Green + Tender Green |
| Code: | Oasis 88 | Height: | 40m |
| Roll Width: | 4.0m/2.0m | Detex: | 8800 |
| Stitches Per M2: | 10080±100 | Backing: | PP+Leno |

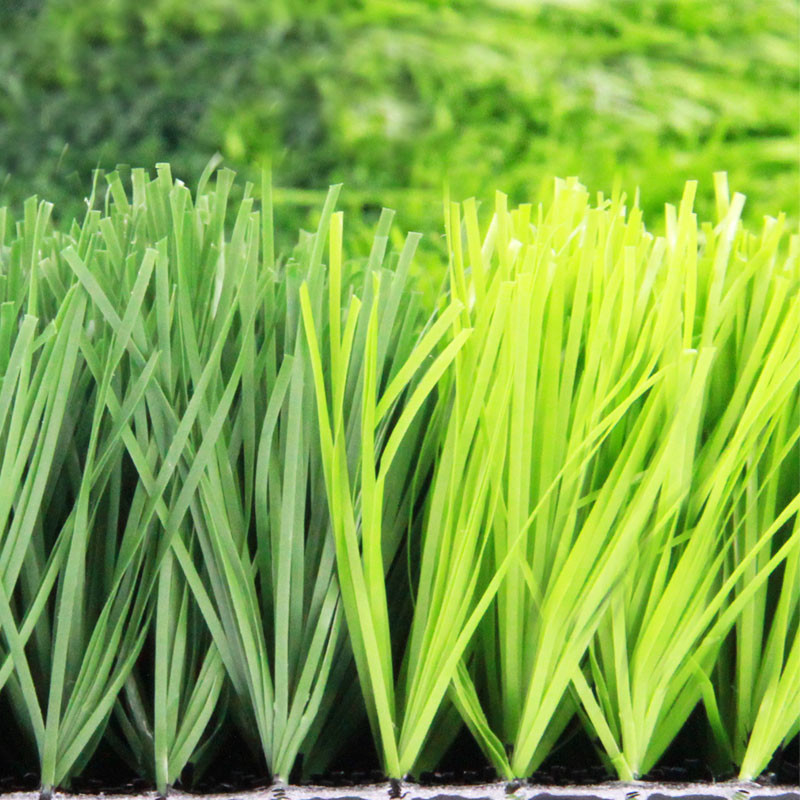

Synthetic Grass Carpet Landscaping Turf Artificial Grass Football Field Artificial Turf
| PRODUCT SPECIFICATION | |||
| Product name: | Oasis 88 | Application: | Football |
| Model: | A350416GD08801 | Roll width: | 4.0m/2.0m |
| Color: | Field/Light green | Roll length: | On request |
| Positioning: | Training | Warranty: | 5 years under AVG warranty terms |
| YARN CHARACTERISTICS | |||
| Yarn 1 | |||
| Structure: | Monofilament | ||
| Composition: | PE | ||
| Dtex: | 8800 | ||
| Yarn thickness: | 150±10μm | ||
| Yarn width: | 0.95±0.1mm | ||
| UV Effects | |||
| Yarn color fastness: | Grey scale ≥4 | UV stability | ＞5000hrs |
| CARPET CHARACTERISTICS | |||
| TURF | |||
| Pile height: | 40mm±2mm | Gauge: | 5/8inch |
| Number of strands per tuft: | 6 strands | Stitches per 10cm: | 16±1 |
| Stitches per m2 | 10080±100 | Total yarn weight: | 928g/sqm ±10% |
| BACKING | |||
| Primary backing: | PP+Net | ||
| Weight: | 171g/sqm | ||
| Latex weight: | 1100g/sqm ±10% | ||
| Total carpet weight: | 2240g/sqm ±100g/sqm | ||
| Carpet | |||
| Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | ＞180mm/hr |
| INFILL REQUIREMENTS | |||
| Sand | |||
| Particle size range | 0.5-1.0mm | Particle shape: | Round |
| Bulk density | 1.28g/cm3 | Application rate: | 25kg/sqm |
| SBR | |||
| Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
| Bulk density: | 0.36g/cm3 | Application rate: | 7kg/sqm |
IMPRESSIVE PERFORMANCE OF THE WINNING TEAM
With its top quality and service, AVG is currently ranked as number one in market share in South China, and the only artificial turf supplier to provide three international events: the 2008 Olympic Games, 2010 Asian Games, and 2011 Universiade Games.AVG grass are exported to the United States, Europe, the Middle East, Asia and more than 100 countries and regions around the world.
As China's sole supplier of high-end aviation grass, AVG is the first to install artificial turf in the middle east for 2 International Airport with a total of 250,000 square meters,gaining a high reputation for Chinese products in the international market.

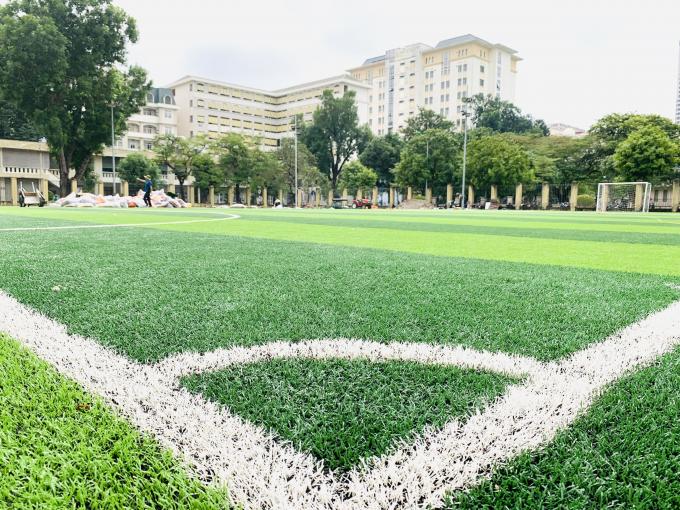

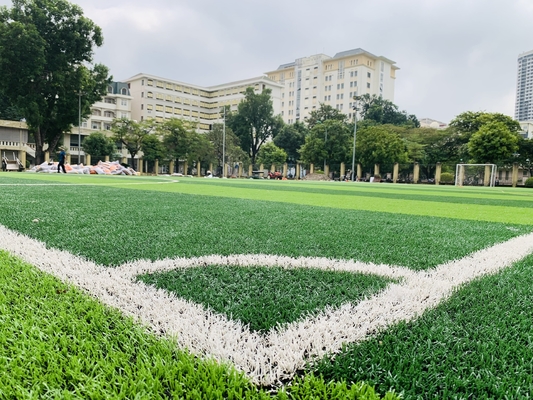

Project
In China , we are the only artificial turf supplier to three international events : The 2008 Olympic Games, The Asian Games and the Universiades .
AV GRASS is used in more than 20,000 professional sports courts and outdoor recreation venues , such as The Hong Kong Polytechnic University, Hong Kong Causeway Bay Sports Center , Sun Yat - Sen University , Mission Hills Golf , Shenzhen Foxconn Group , Japan Kobe University , Indonesia's National Stadium as well as Saudi Arabia United Arab Emirates and Exhibition Centre .
Packing and shipping:
Outside : transparent PE film bags wrapping or white woven geotextile wrapping .
Inside : with paper plug ,with plastic plug and without any plug .
