Product Details:
Payment & Shipping Terms:
|
Features: | Classic, Supple, Cost-effective | Item: | Football Grass |
---|---|---|---|
Application: | Football | Colour: | Field Green + Tender Green |
Code: | Slit Film 120 | Height: | 40-70m |
Roll Width: | 4.0m/2.0m | Detex: | 12000 |
Stitches Per M2: | 9450±100 | Backing: | PP+Leno |

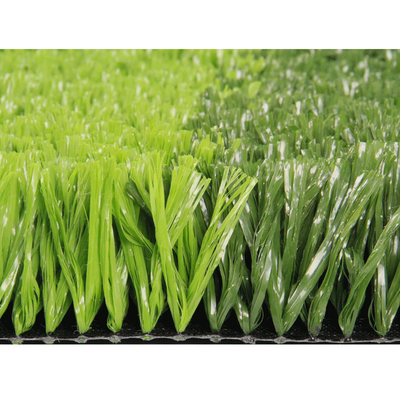

Artificial Grass Baseball Turf 40-70mm Football Grass For Soccer Ground
PRODUCT SPECIFICATION | |||
Product name: | Slit Film 120 | Application: | Rugby,Baseball |
Model: | A650415KW12011 | Roll width: | 4.0m/2.0m |
Color: | Sport green/Light green | Roll length: | On request |
Positioning: | Professional | Warranty: | 6 years under AVG warranty terms |
YARN CHARACTERISTICS | |||
Yarn 1 | |||
Structure: | Fibrillated | ||
Composition: | PE | ||
Dtex: | 12000 | ||
Yarn thickness: | 100±10μm | ||
Yarn width: | 13±0.1mm | ||
UV Effects | |||
Yarn color fastness: | Grey scale ≥4 | UV stability | >5000hrs |
CARPET CHARACTERISTICS | |||
TURF | |||
Pile height: | 40-70mm±2mm | Gauge: | 5/8inch |
Number of strands per tuft: | 1 strands | Stitches per 10cm: | 15±1 |
Stitches per m2 | 9450±100 | Total yarn weight: | 1235g/sqm ±10% |
BACKING | |||
Primary backing: | PP+Leno | ||
Weight: | 171g/sqm | ||
Latex weight: | 1100g/sqm ±10% | ||
Total carpet weight: | 2500g/sqm ±100g/sqm | ||
Carpet | |||
Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | >180mm/hr |
INFILL REQUIREMENTS | |||
Sand | |||
Particle size range | 0.5-1.0mm | Particle shape: | Round |
Bulk density | 1.28g/cm3 | Application rate: | 25kg/sqm |
SBR | |||
Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
Bulk density: | 0.36g/cm3 | Application rate: | 7kg/sqm |
Packing and shipping:
Outside : transparent PE film bags wrapping or white woven geotextile wrapping .
Inside : with paper plug ,with plastic plug and without any plug .
AVG Company Profile:
Efficient Production Capacity
Equipped with totally 30 automatic production lines with advanced manufacturing faclities that yield
annual production capacity up to 20 million square meters of artificial turf.
Hi-tech R&D
3 R&D Centers in China and USA, cooperating with world-class universities to provide products in high quality and excellent performance as per the synchronized design in international trend.
Fine Raw Materials
Extremely stringent in the selection of raw materials. PE raw materials are imported from Sabic Saudi Arabia and Dow Canada. SBR latex is sourced from Dow US and BASF Germany.
How to install the artificial grass:
Trim grass to fit area . |
Trimming edge of grass prior to applying the glue |
Jointing tape in place . |
Apply glue to tape . |
joint prepared . |
offer grass edges togrther . |
