Product Details:
Payment & Shipping Terms:
|
| Features: | Soft, Flat, Thick, Wear-resistant | Item: | Artificial Grass |
|---|---|---|---|
| Application: | Tennis | Colour: | Ivy Green + Moss Green |
| Code: | Curly PE 96B | Height: | 10-15m |
| Roll Width: | 4.0m/2.0m | Detex: | 9600 |
| Stitches Per M2: | 67200 Stitches/m² | Backing: | PP+Leno |
| High Light: | Indoor Artificial Golf Grass,Artificial Golf Grass Putting Green,15mm Artificial Golf Grass |
||

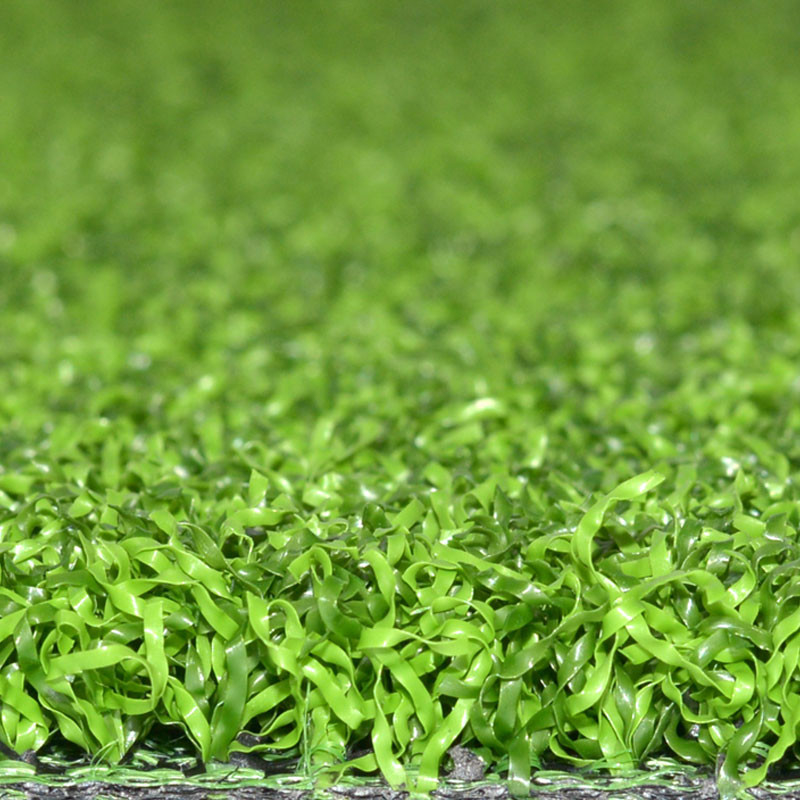

Outdoor And Indoor Artificial Golf Grass Putting Green 10-15mm
Curly PE 96B upgraded premium curly yarn, perfect balance for softness and wearability, idealistic for hockey field and golf course

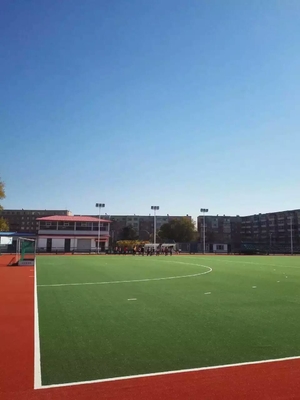

According to the FIH Global standard, an upgraded formula has been adopted for the existing curly yarn and bringing the perfect blend of softness and wearability. The soft surface largely reduces the risk of friction burns for the players, while enhanced width,thickness and core nature of durability will contribute to long service span for the field. Lush, even and flat top feature better ball roll directional consistency and ball rebound. The fresh bi-color is more vigorous-looking as a fine selection for the hockey field.
Key benefits:
| Type of Yarn | Curly Monofilament PE |
| Pile Height | 10-15mm |
| Dtex | 9,600 |
| Density | 23,100 stitches/m² |
| Color | Bi-color(Field Green+Light Green) |
| Backing | Double-layered PP cloth with SBR Latex coating |
Curly PE 96B is recommended for training hockey filed with high frequency of playing and training golf course, which represents a perfect combination of superior performance and cost effectiveness.
| PRODUCT SPECIFICATION | |||
| Product name: | Curly PE 96 | Application: | Hockey |
| Model: | A613327QE096B4 | Roll width: | 4.0m/2.0m |
| Color: | Field&Olive green Bi-color | Roll length: | On request |
| Positioning: | Professional | Warranty: | 6 years under AVG warranty terms |
| YARN CHARACTERISTICS | |||
| Yarn 1 | |||
| Structure: | Curly monofillament | ||
| Composition: | PE | ||
| Dtex: | 9600 | ||
| Yarn thickness: | 155±10μm | ||
| Yarn width: | 0.9±0.1mm | ||
| UV Effects | |||
| Yarn color fastness: | Grey scale ≥4 | UV stability | ＞5000hrs |
| CARPET CHARACTERISTICS | |||
| TURF | |||
| Pile height: | 10-15mm±1mm | Gauge: | 3/16inch |
| Number of strands per tuft: | 8 strands | Stitches per 10cm: | 27±1 |
| Stitches per m2 | 56700±100 | Total yarn weight: | 1825g/sqm ±10% |
| BACKING | |||
| Primary backing: | PP | ||
| Weight: | 235g/sqm | ||
| Latex weight: | 1100g/sqm ±10% | ||
| Total carpet weight: | 3170g/sqm ±100g/sqm | ||
| Carpet | |||
| Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | ＞180mm/hr |
| INFILL REQUIREMENTS | |||
| Sand | |||
| N/A | |||
| SBR | |||
| N/A | |||
1. Pre-sale Service
For more information, when contacting our staff, we will list the details you want to know and send to you the specification at our best.
For your requirement, you could tell us your requirement, we will try our best to meet your need and give you the best suggestion.
For other question, you can feel free to raise your question, we will answer your question sincerely and patiently to let you know more about our company and products.
2. After-sale Service
Quality control: Test the goods one by one through the strict and professional test.
Goods return policy: Reserve more rights for our customers, which makes them believe in us whole-heartedly.
Specifications:
| Product Series | Multi - Functional For Tennis Court Water - Saving Synthetic Grass | |||
| Applications | Tennis Court | |||
| Features | Evergreeness (Yes) | Rebound resilience (Moderate) | ||
| Water-saving (Yes) | UV resistant (Yes) | |||
| Easy maitanence (Yes) | Fire resistance (Yes) | |||
| Gentle to skin (Yes) | Containing heavy metal (No) | |||
| Abrasion resistance (Yes) | Weather-proof (Yes) | |||
| Selling points | • Excellent rebound and softness performance, ensure the safety of kneels and skin; | |||
| • Achieve sports standard of natural lawn, comparable with natural turf fields | ||||
| • Good drainage, anticorrosive anti-moldy, fastness and UV resistance | ||||
| • Enjoyable Playing experience and natural looking | ||||
| • Short grass, high density, even surface; When be used for tennis court turf, need to infill, the non- direction surface of grass not influence the direction of ball rolling, proper elasticity and drainage, supply excellent sport performance at field. | ||||
| Warranty | 3 - 5 years | |||
| Basic Info | Yarn Type | Filbrillated | ||
| Dtex | 6600 | |||
| Colors | Sports Green | |||
| Height(mm) | Customized | |||
| Gauge(inch) | 3 / 16 , 3 / 8 | |||
| Stitches per Meter | 170 - 350 s / m | |||
| Tufts/m² | 17850 - 73500 | |||
| Backing | PP + NET | |||
| Loading | MOQ(sqm) | 1000 | ||
| Lead time | 15-20 days according to production schedule | |||
| Roll Width(m) | up to 5m | |||
| Roll Length(m) | Follow drawings or customized | |||
| Installation | Infill for installation | Infill is NOT necessarily needed | ||
| Rubber advice (kg/m2) | N/A | |||
| Sand advice (kg/m2) | N/A | |||
| Free fiber height (mm) | N/A | |||
| Others | Fiber width | According to the fibers | ||
| Fiber thickness | According to the fibers | |||
| Bounding force (N) | ≧30 | |||
| Fiber color fastness | Blue scale ≧7; grey scale≧4 | |||
| UV stability | ＞6000hrs | |||
| Penetration speed | 60Ltr/min (without infill) | |||
| Drain holes | ＞39/㎡ (hole diameter: 4-5mm) | |||
| Operating tempreture | -50℃-60℃ or -58℉-140℉ | |||
FAQ
1. What’s the MOQ of your Fake Grass Carpet For Soccer Fields?
500 sqm/model.
2. What’s your production time?
About 5 to 15 days.
3.Do you have export license?
Yes, we can finish export clearance process by our own.
