Product Details:
Payment & Shipping Terms:
|
| Features: | Unique Diamond + Reinforced Design | Item: | Football Grass |
|---|---|---|---|
| Application: | Football | Colour: | Field Green + Tender Green |
| Code: | 4D130 | Height: | 40mm |
| Roll Width: | 4.0m/2.0m | Detex: | 13000 |
| Stitches Per M2: | 10080±100 | Backing: | PP+Leno |
| High Light: | Monofilament Football Artificial Turf,171g/sqm Football Artificial Turf,6 Strands Football Artificial Turf |
||
Fake Grass Green Carpet Roll Artificial Turf Grass Soccer Field
Diamond 4D 130

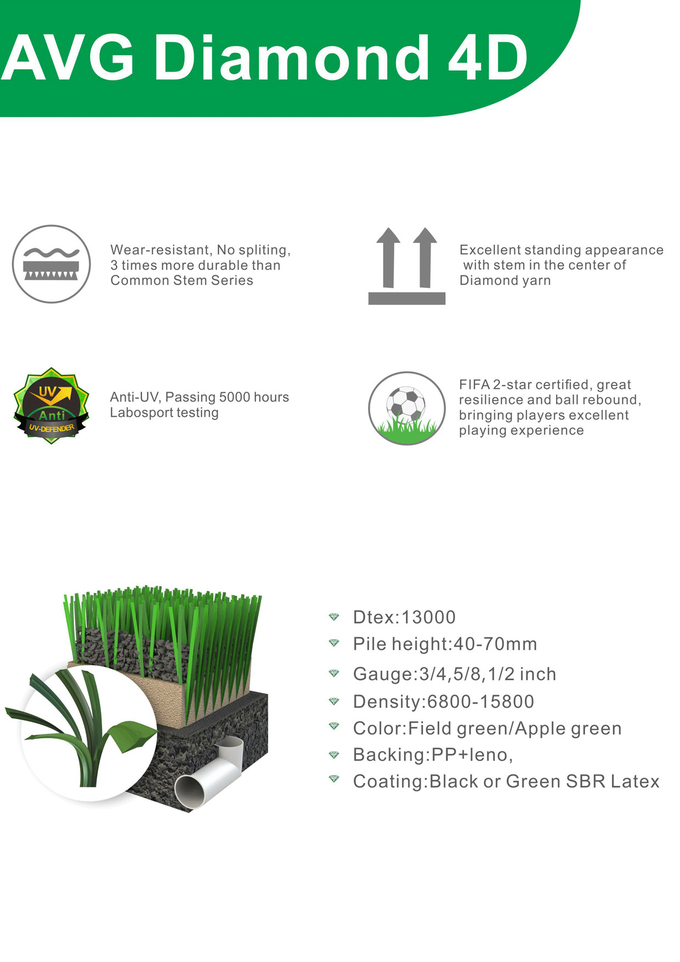

◆Core selling point: unique diamond + reinforced design, perfect combination of wear resistance and straightness appearance
◆Warranty period: 6-8 years
◆Recommended grass height: 40mm-60mm
◆Base fabric configuration: black and green PP+ leno
| PRODUCT SPECIFICATION | |||
| Product name: | AVG 4D130-40 | Application: | Football |
| Model: | AF50415CS13022 | Roll width: | 4.0m/2.0m |
| Color: | Field&Olive Bi-color | Roll length: | On request |
| Accreditations | FIFA Quality | Warranty: | 8 years under AVG warranty terms |
| YARN CHARACTERISTICS | |||
| Yarn 1 | |||
| Structure: | Monofilament | ||
| Composition: | PE | ||
| Dtex: | 13000 | ||
| Yarn thickness: | 250±10μm | ||
| Yarn width: | 1.0±0.1mm | ||
| UV Effects | |||
| Yarn color fastness: | Grey scale ≥4 | UV stability | ＞5000hrs |
| CARPET CHARACTERISTICS | |||
| TURF | |||
| Pile height: | 40mm±2mm | Gauge: | 5/8inch |
| Number of strands per tuft: | 6 strands | Stitches per 10cm: | 15±1 |
| Stitches per m2 | 10080±100 | Total yarn weight: | 1360g/sqm ±10% |
| BACKING | |||
| Primary backing: | PP+Leno | ||
| Weight: | 171g/sqm | ||
| Latex weight: | 1100g/sqm ±10% | ||
| Total carpet weight: | 2630g/sqm ±100g/sqm | ||
| Carpet | |||
| Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | ＞180mm/hr |
| INFILL REQUIREMENTS | |||
| Sand | |||
| Particle size range | 0.5-1.0mm | Particle shape: | Round |
| Bulk density | 1.28g/cm3 | Application rate: | 12kg/sqm |
| SBR | |||
| Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
| Bulk density: | 0.36g/cm3 | Application rate: | 12kg/sqm |
Advantage
-- Always green without season influence
-- Less maintenance and longer service time
-- Customize pile height and gague
-- PU backing with better tensile strengthen
-- New PP and PE raw material
Company Introduction
Leading Capacity of Production
-- Manufacturing base
AVG is the only company possess two factory in the National Economic and Technical Development Zone. With over 70,000 square meters plant. The capacity reach to 15million square meters each year. And we have develop the supplement facility like goal and sepp for customer convenience.
AVG also the first list company of artificial grass in China, it is obvious that we have the ability to provide you the best service and product.
-- Fiber Production System
Complete new feeding machine import from USA, two way feeding for raw material and Color Masterbatch. Make sure the stable quality and average color of the yarn.
-- Twisting device
SAURER twisting machine from German, high speed machine save energy up to 50%.
-- Tufted Equipment
Internation leading COBBLE tufting machine from UK. Available gauge include 3/4" 3/8" 1/2" ect. And the import machine ensure the accurate pile height, dense and cutting.
