Product Details:
Payment & Shipping Terms:
|
Features: | Unique Diamond + Reinforced Design | Item: | Football Grass |
---|---|---|---|
Application: | Football | Colour: | Field Green + Tender Green |
Code: | 4D130 | Height: | 40mm |
Roll Width: | 4.0m/2.0m | Detex: | 13000 |
Stitches Per M2: | 10080±100 | Backing: | PP+Leno |
High Light: | 40mm Height Soccer Field Fake Grass,SBR Latex Soccer Field Fake Grass,5/8 Inch Soccer Field Fake Grass |

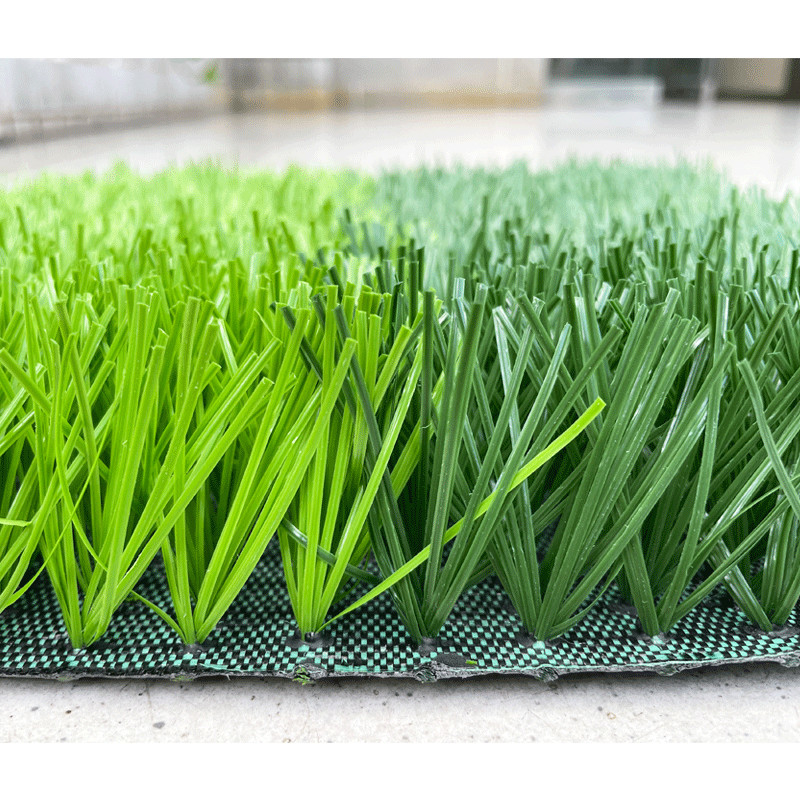

Turf Green Carpet Roll Artificial Synthetic Grass For Soccer Field

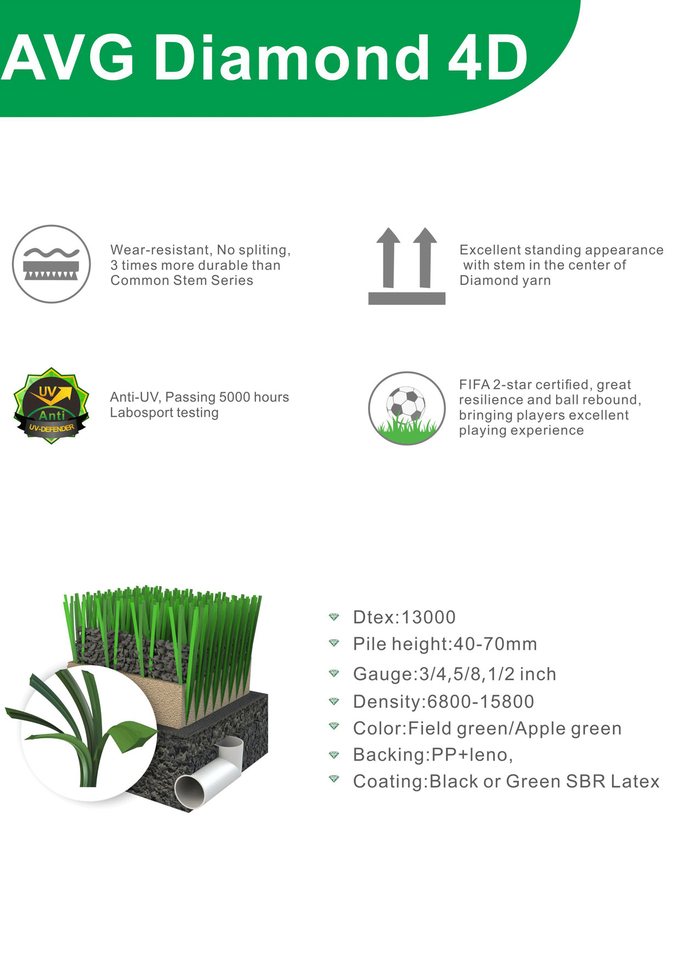

Diamond 4D 130
◆Core selling point: unique diamond + reinforced design, perfect combination of wear resistance and straightness appearance
◆Warranty period: 6-8 years
◆Recommended grass height: 40mm-60mm
◆Base fabric configuration: black and green PP+ leno
PRODUCT SPECIFICATION | |||
Product name: | AVG 4D130-40 | Application: | Football |
Model: | AF50415CS13022 | Roll width: | 4.0m/2.0m |
Color: | Field&Olive Bi-color | Roll length: | On request |
Accreditations | FIFA Quality | Warranty: | 8 years under AVG warranty terms |
YARN CHARACTERISTICS | |||
Yarn 1 | |||
Structure: | Monofilament | ||
Composition: | PE | ||
Dtex: | 13000 | ||
Yarn thickness: | 250±10μm | ||
Yarn width: | 1.0±0.1mm | ||
UV Effects | |||
Yarn color fastness: | Grey scale ≥4 | UV stability | >5000hrs |
CARPET CHARACTERISTICS | |||
TURF | |||
Pile height: | 40mm±2mm | Gauge: | 5/8inch |
Number of strands per tuft: | 6 strands | Stitches per 10cm: | 15±1 |
Stitches per m2 | 10080±100 | Total yarn weight: | 1360g/sqm ±10% |
BACKING | |||
Primary backing: | PP+Leno | ||
Weight: | 171g/sqm | ||
Latex weight: | 1100g/sqm ±10% | ||
Total carpet weight: | 2630g/sqm ±100g/sqm | ||
Carpet | |||
Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | >180mm/hr |
INFILL REQUIREMENTS | |||
Sand | |||
Particle size range | 0.5-1.0mm | Particle shape: | Round |
Bulk density | 1.28g/cm3 | Application rate: | 12kg/sqm |
SBR | |||
Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
Bulk density: | 0.36g/cm3 | Application rate: | 12kg/sqm |
Feature
--FIFA Laboratory certification
--Player friendly and free from abration
--Free from heavy metal, Pass heavy metal test
--Origin design, got patent mark.
Advantage
--Long Wanrraty of 6-7years
--Popular among Asia and mid-east
--None recyle material
--Two factory more than 100000Square meter in two high technology development district.
After Sales Service
-- Quick respond. Our sales online most of the time
-- Quick Confirm. We will confirm the problem through picture you send and decription you tell.
-- Quick Solving. We have three R&D team in Chian and US, promise will give solution as soon.
The Methods for the Installation of Artificial Sport Grass
Discharge the Turf Rolls and Draw the Outline
Place the Turf and Cut Off the Extra Margins
Coating the Glue
Cutting and Inlay of Functional Lines
Infill Silica Sand and Rubber Granule
Test, Inspection and Approval
