Product Details:
Payment & Shipping Terms:
|
| Features: | Unique Diamond + Reinforced Design | Item: | Football Grass |
|---|---|---|---|
| Application: | Football | Colour: | Field Green + Tender Green |
| Code: | 4D130 | Height: | 40mm |
| Roll Width: | 4.0m/2.0m | Detex: | 13000 |
| Stitches Per M2: | 10080±100 | Backing: | PP+Leno |
| High Light: | 60mm Artificial Synthetic Grass,Wear Resistance Artificial Synthetic Grass |
||

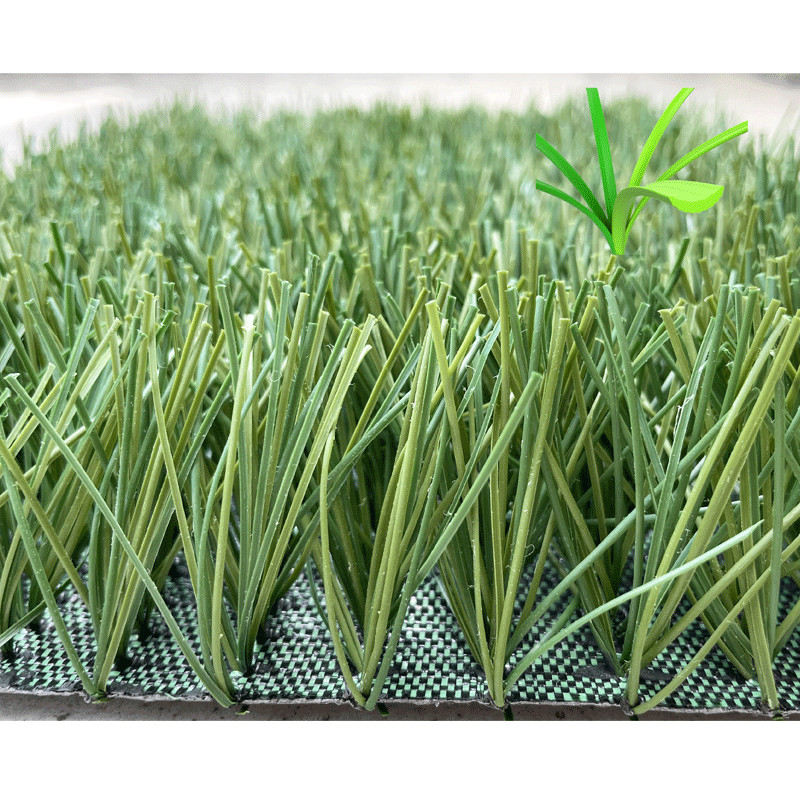

Turf Green Carpet Roll Artificial Synthetic Grass For Soccer Field

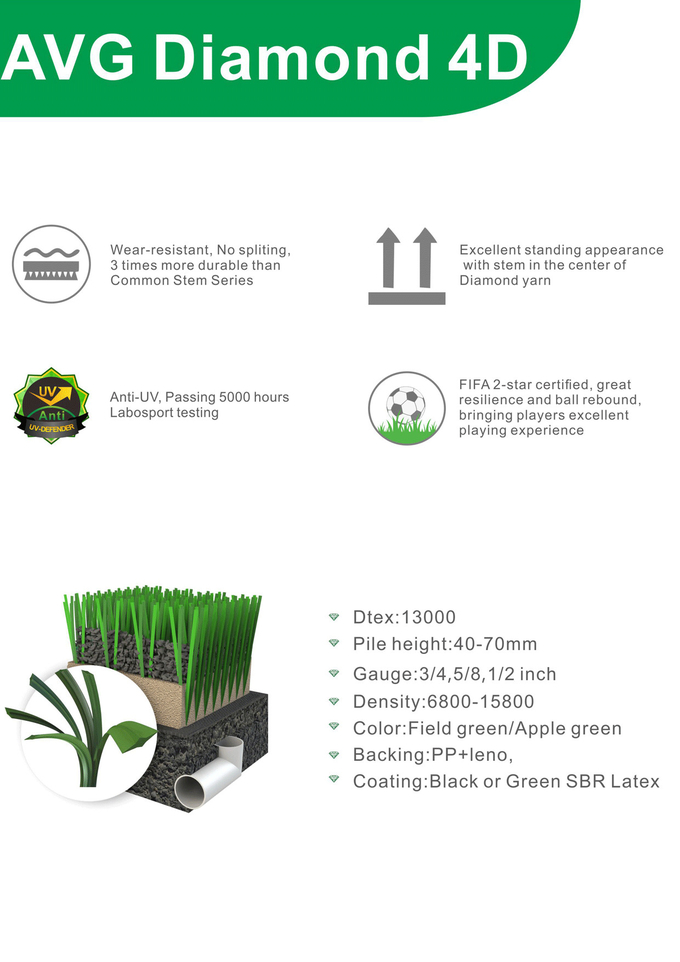

Diamond 4D 130
◆Core selling point: unique diamond + reinforced design, perfect combination of wear resistance and straightness appearance
◆Warranty period: 6-8 years
◆Recommended grass height: 40mm-60mm
◆Base fabric configuration: black and green PP+ leno
| PRODUCT SPECIFICATION | |||
| Product name: | AVG 4D130-40 | Application: | Football |
| Model: | AF50415CS13022 | Roll width: | 4.0m/2.0m |
| Color: | Field&Olive Bi-color | Roll length: | On request |
| Accreditations | FIFA Quality | Warranty: | 8 years under AVG warranty terms |
| YARN CHARACTERISTICS | |||
| Yarn 1 | |||
| Structure: | Monofilament | ||
| Composition: | PE | ||
| Dtex: | 13000 | ||
| Yarn thickness: | 250±10μm | ||
| Yarn width: | 1.0±0.1mm | ||
| UV Effects | |||
| Yarn color fastness: | Grey scale ≥4 | UV stability | ＞5000hrs |
| CARPET CHARACTERISTICS | |||
| TURF | |||
| Pile height: | 40mm±2mm | Gauge: | 5/8inch |
| Number of strands per tuft: | 6 strands | Stitches per 10cm: | 15±1 |
| Stitches per m2 | 10080±100 | Total yarn weight: | 1360g/sqm ±10% |
| BACKING | |||
| Primary backing: | PP+Leno | ||
| Weight: | 171g/sqm | ||
| Latex weight: | 1100g/sqm ±10% | ||
| Total carpet weight: | 2630g/sqm ±100g/sqm | ||
| Carpet | |||
| Carpet tuft withdrawal: | ≥30N | Water permeability of carpet: | ＞180mm/hr |
| INFILL REQUIREMENTS | |||
| Sand | |||
| Particle size range | 0.5-1.0mm | Particle shape: | Round |
| Bulk density | 1.28g/cm3 | Application rate: | 12kg/sqm |
| SBR | |||
| Particle size range: | 1.25-2.0mm | Particle shape: | Irregular |
| Bulk density: | 0.36g/cm3 | Application rate: | 12kg/sqm |
Description:
AVG Company Profile:
Efficient Production Capacity
Equipped with totally 30 automatic production lines with advanced manufacturing faclities that yield
annual production capacity up to 20 million square meters of artificial turf.
Hi-tech R&D
3 R&D Centers in China and USA, cooperating with world-class universities to provide products in high quality and excellent performance as per the synchronized design in international trend.
Fine Raw Materials
Extremely stringent in the selection of raw materials. PE raw materials are imported from Sabic Saudi Arabia and Dow Canada. SBR latex is sourced from Dow US and BASF Germany.
